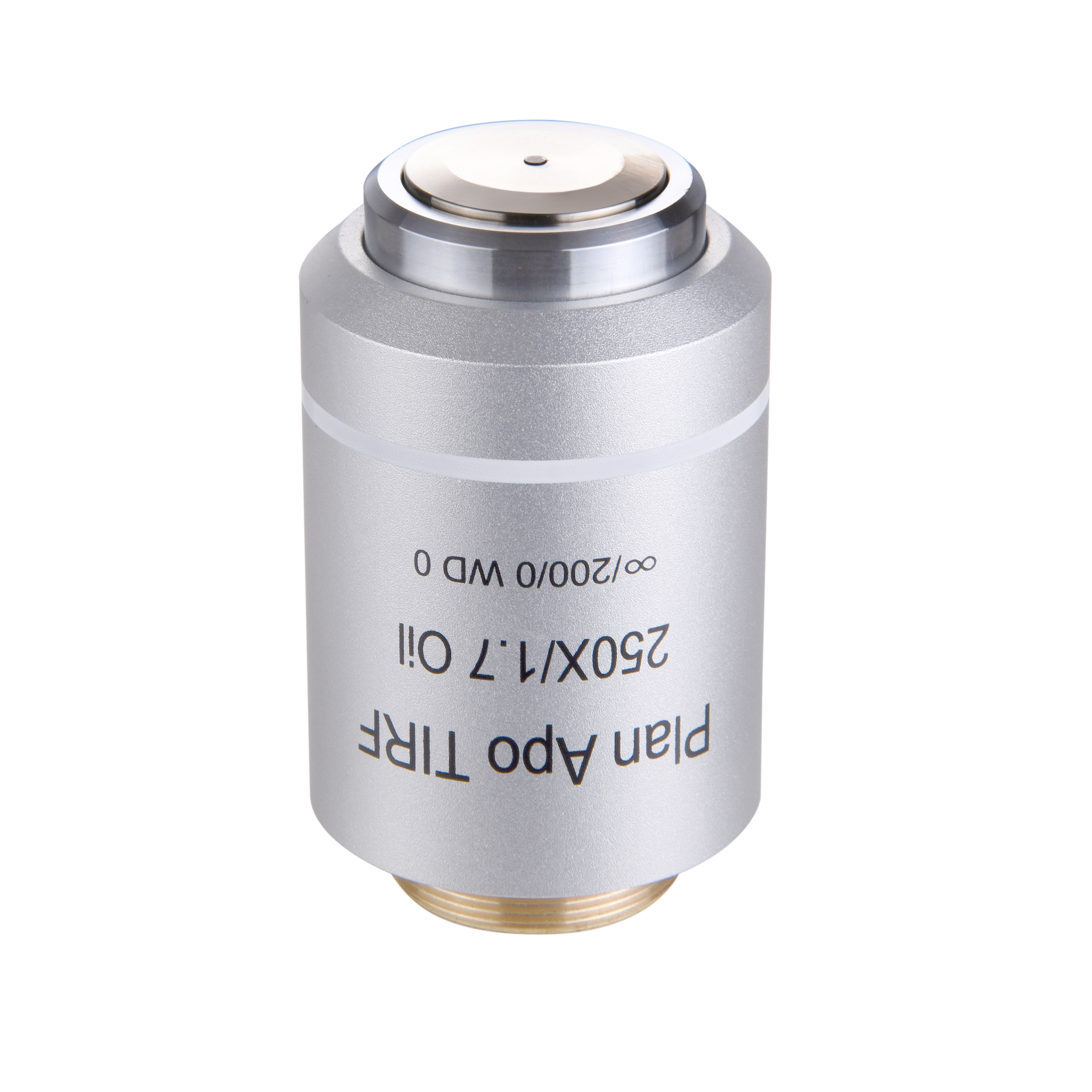

Infinity Plan APO TIRF 250X/1.7 objective with the high NA while f=200mm
Infinity Plan APO TIRF 250X/1.7 objective while f=200mm， hign NA=1.7, good transmittion rate, while two model working distance like WD=0.28mm and WD=0mm.
放大倍数 Magnification | 规格型号 Model | 数值孔径 NA | 工作距离 WD(mm) | 焦距 f’ (mm) | 分辨率 R (μm) | 焦深 DF (μm) | 物方视场 on object (mm) | 像方视场 on image (mm) | 螺纹尺寸 Screw |
250x | TIRF PlanApo(45)-250X | 1.70 | 0.00 | 0.80 | 0.48 | 0.68 | 0.20 | 25 | M20.32 |
250x | TIRF PlanApo(45)-250X | 1.70 | 0.28 | 0.80 | 0.48 | 0.68 | 0.20 | 25 | M20.32 |
