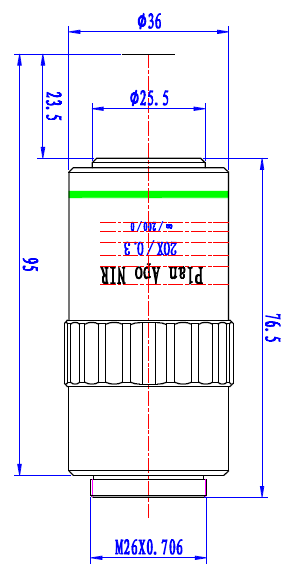

Infinity 95MM (Plan NIR APO) f′=200mm（Tube lens）NIR Objective Wave Range: 400nm-1800nm
This set NIR objective is with wave range to 1800nm, only supplier in China. The objective with high transmission rate, share image, specifically in using in lase and semiconductor and so on field.
放大倍数 Magnification | 规格型号 Model | 数值孔径 NA | 工作距离 WD(mm) | 焦距 f’ (mm) | 分辨率 R (μm) | 焦深 DF (μm) | 物方视场 on object (mm) | 像方视场 on image (mm) | 螺纹尺寸 Screw |
20x | NIR-20X | 0.30 | 23.3 | 10 | 2.16 | 7.2 | 1.3 | 26.0 | M26 |
