It is suitable for observation of large or multiple samples, with smooth appearance, integrated design and excellent and sharp imaging.
1.Introduction
XSK300 upright metallurgical microscope is suitable to observe surfaces of opaque object. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.It comes with the following Features
▲ With long working distance plan achromatic objectives (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
▲ With large move range mechanical stages,moving range:8"X8"(204mmX204mm)
▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.8μm
▲ 6V 30W halogen lamp, adjustable brightness
▲ Trinocular, can switch to normally/polarize observation, brightfield/darkfield observation. can send 100% of light to the binocular eyepieces or to the top port

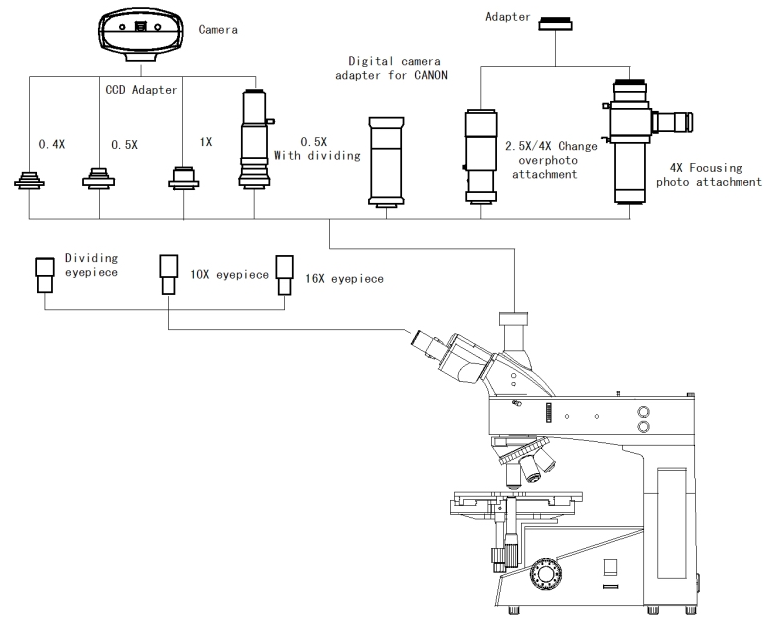

2.Structure
3. Image
Dark field observation Bright field observation Polarization observation
