Microscope

Biological Objective

Your position ：Home >Microscope >Microscope accessories >Objective >Biological Objective

Biological

1、Infinity (Plan APO) f′=200mm（Tube lens）High NA and Big Field Objective Wave Range: 400nm -700nm Focus Length: 45.06mm

2、 Infinity (PlanPolyAPO) f′=200mm（Tube lens）High NA and Big Field Objective Wave Range: 350nm -1100nm Focus Length: 45.06mm

3、Infinity (Plan ) f′=200mm（Tube lens）High NA and Big Field Objective Wave Range: 400nm -700nm Focus Length: 45.06mm

4、（Finity Plan ）（195mm） High NA Objective Wave Range: 400nm -700nm Focus Length: 45.06mm

5、(Finity Plan APO)（195mm） High NA and Big Field Objective Wave Range: 400nm -700nm Focus Length: 45.06mm

The series biological objectives includes all kinds of models, like high NA, exta field, super plan apo, finity and infinity optical system. you can call us or email to us and we can design and make it according the customers' requests if you can't found the objectives which you want.

1、Infinity (Plan APO) f′=200mm（Tube lens）High NA and Big Field Objective Wave Range: 400nm -700nm Focus Length: 45.06mm

放大倍数 Magnification	规格型号 Model	数值孔径 NA	工作距离 WD(mm)	焦距 f’ (mm)	分辨率 R (μm)	焦深 DF (μm)	物方视场 On object (mm)	像方视场 On image (mm)	螺纹尺寸 Screw
1.0x	CCF Apo001X	0.015	2.7	200.0	22.2	148	28.0	28.0	0.8”
2.5x	CCF Apo0025X	0.05	1.8	80.0	6.65	133.2	11.2	28.0	0.8”
4x	CCF Apo004X	0.16	3.5	50.0	2.08	13.01	7.0	28.0	0.8”
10x	CCF Apo010X	0.40	1.4	20.0	0.083	2.08	2.8	28.0	0.8”
20x	CCF Apo020X	0.70	0.8	10.0	0.48	0.68	1.4	28.0	0.8”
40x	CCF Apo040X	0.90	0.18	5.0	0.37	0.41	0.70	28.0	0.8”
100x	CCF Apo100XD	0.93	0.19	2.0	0.36	0.39	0.28	28.0	0.8”

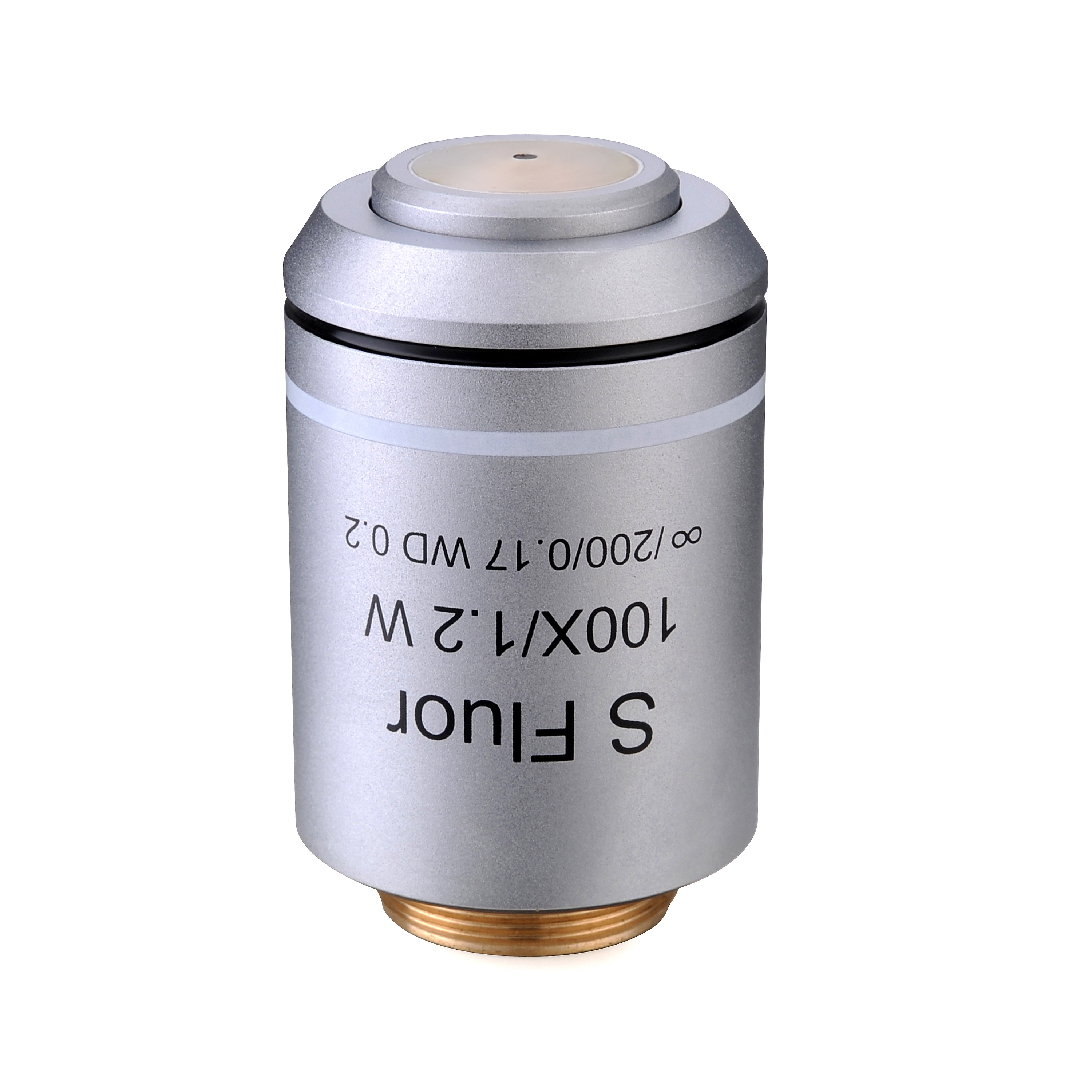

100x	CCF Apo100XW	1.20 Water	0.13	2.0	0.28	0.23	0.28	28.0	0.8”
100x	CCF Apo100XO	1.40 Oil	0.08	2.0	0.24	0.17	0.28	28.0	0.8”

2、 Infinity (PlanPolyAPO) f′=200mm（Tube lens）High NA and Big Field Objective Wave Range: 350nm -1100nm Focus Length: 45.06mm

放大倍数 Magnification	规格型号 Model	数值孔径 NA	工作距离 WD(mm)	焦距 f’ (mm)	分辨率 R (μm)	焦深 DF (μm)	物方视场 On object (mm)	像方视场 On image (mm)	螺纹尺寸 Screw
4x	CCF PlanPolyApo004X	0.13	2.8	50.0	2.56	19.7	6.25	25.0	0.8”
10x	CCF PlanpolyApo010X	0.30	4.0	20.0	1.11	3.7	2.5	25.0	0.8”
20x	CCF PlanPolyApo020X	0.75	0.6	10.0	0.44	0.59	1.25	25.0	0.8”
40x	CCF PlanPolyApo040X	0.80	0.4	5.0	0.42	0.52	0.63	25.0	0.8”
100x	CCF PlanPolyApo100XW	1.20 W	0.13	2.0	0.30	0.28	0.25	25.0	0.8”

3、Infinity (Plan ) f′=200mm（Tube lens）High NA and Big Field Objective Wave Range: 400nm -700nm Focus Length: 45.06mm

放大倍数 Magnification	规格型号 Model	数值孔径 NA	工作距离 WD(mm)	焦距 f’ (mm)	分辨率 R (μm)	焦深 DF (μm)	物方视场 On object (mm)	像方视场 On image (mm)	螺纹尺寸 Screw
5x	CCF Apo005X	0.17	13.7	40.0	1.97	11.6	5.4	27.0	0.8”
10x	CCF Apo010X	0.37	2.6	20.0	0.91	2.45	2.7	27.0	0.8”
20x	CCF Apo020X	0.67	0.48	10.0	0.50	0.75	1.35	27.0	0.8”
40x	CCF Apo040X	0.77	0.37	5.0	0.55	0.72	0.68	27.0	0.8”
60x	CCF Apo60XD	0.87	0.30	3.3	0.39	0.44	0.45	27.0	0.8”

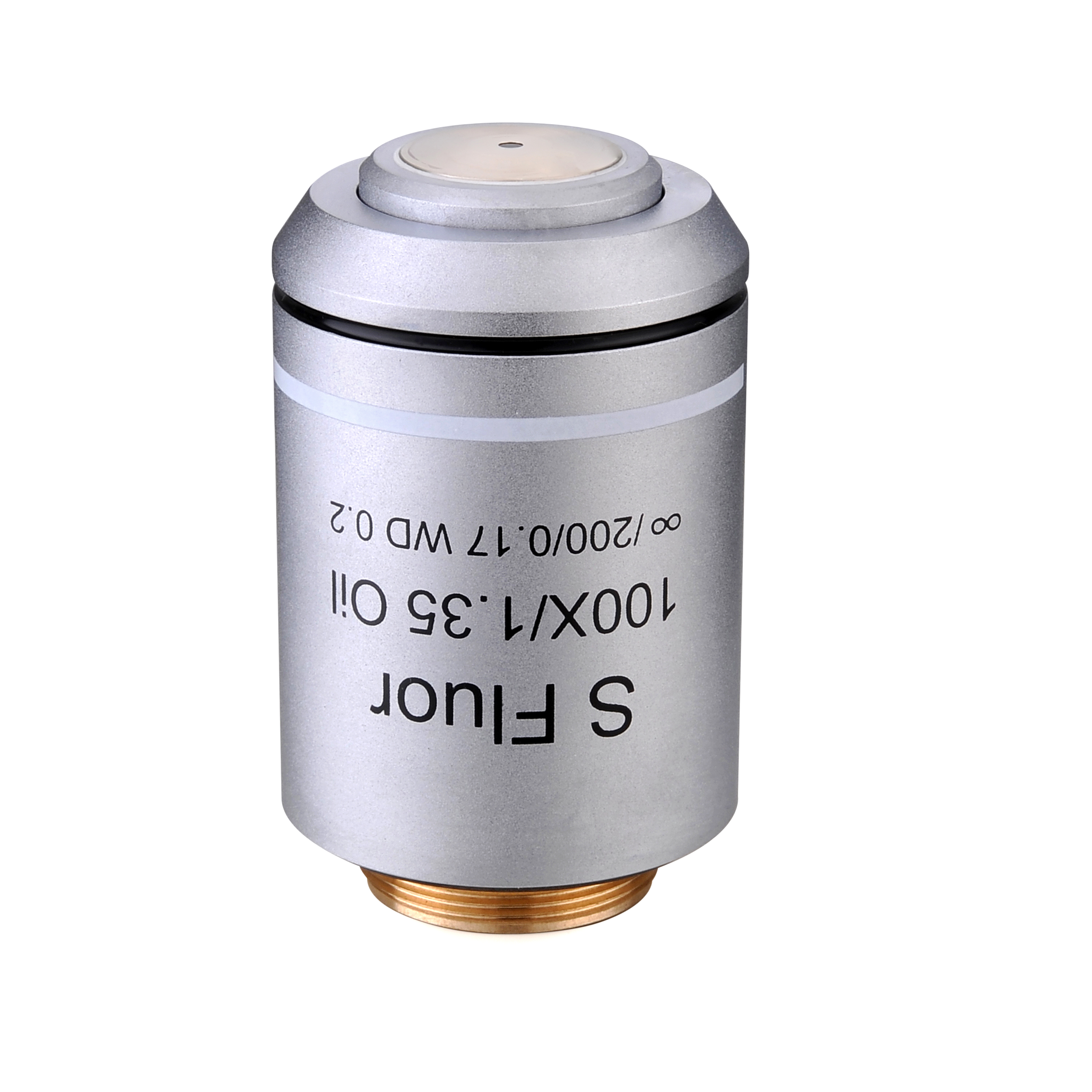

100x	CCF Apo100XO	1.37 Oil	0.10	2.0	0.24	0.18	0.27	27.0	0.8”

4、（Finity Plan ）（195mm） High NA Objective Wave Range: 400nm -700nm Focus Length: 45.06mm

放大倍数 Magnification	规格型号 Model	数值孔径 NA	工作距离 WD(mm)	焦距 f’ (mm)	分辨率 R (μm)	焦深 DF (μm)	物方视场 on object (mm)	像方视场 on image (mm)	螺纹尺寸 Screw
10x	LCFPlan010X	0.30	11.2	15.05	0.74	1.11	3.7	22.0	0.8”
20x	LCFPlan020X	0.65	0.53	8.37	0.51	0.79	1.1	22.0	0.8”
40x	LCFPlan040X	0.70	0.45	4.49	0.48	0.68	0.55	22.0	0.8”
60x	LCFPlan060X	0.85	0.20	2.79	0.39	0.46	0.37	22.0	0.8”
100x	LCFPlan100XW	1.20 Water	0.08	1.78	0.28	0.23	0.22	22.0	0.8”
100x	LCFPlan100XO	1.30 Oil	0.15	1.69	0.26	0.20	0.22	22.0	0.8”

5、(Finity Plan APO)（195mm） High NA and Big Field Objective Wave Range: 400nm -700nm Focus Length: 45.06mm

放大倍数 Magnification	规格型号 Model	数值孔径 NA	工作距离 WD(mm)	焦距 f’ (mm)	分辨率 R (μm)	焦深 DF (μm)	物方视场 on object (mm)	像方视场 on image (mm)	螺纹尺寸 Screw
20x	CCFApo020XF	0.70	0.65	7.52	0.48	0.68	1.25	25.0	0.8”
60x	CCFApo060XOF	1.00 Oil	0.15	2.56	0.33	0.33	0.42	25.0	0.8”
100x	CCFApo100XOF	1.40 Oil	0.08	1.54	0.24	0.17	0.25	25.0	0.8”
