Infinity (Plan) f′=200mm（Tube Lens）High NA Objective Wave Range: 400nm -700nm Focus Length: 45.06mm
This series objectives image is very sharp, with one good transsmition rate. while 10x, 20x and 40x are multi objective for reflecting light and translating light.
Covering NIR wave.
Like 10X also covering NUV wave.
Upright Fluoresence Obejctive
1. Infinity (Plan) f′=200mm（Tube Lens）High NA Objective Wave Range: 400nm -700nm Focus Length: 45.06mm
放大倍数 Magnification | 规格型号 Model | 数值孔径 NA | 工作距离 WD(mm) | 焦距 f’ (mm) | 分辨率 R (μm) | 焦深 DF (μm) | 物方视场 on object (mm) | 像方视场 on image (mm) | 螺纹尺寸 Screw |
10x | Fluorescence-10X | 0.40 | 3.6 | 20.0 | 0.74 | 1.65 | 2.2 | 22.0 | 0.8” |
20x | Fluorescence-20X | 0.80 | 0.6 | 10.0 | 0.45 | 0.59 | 1.1 | 22.0 | 0.8” |
40x | Fluorescence-40X | 0.95 | 0.17 | 5.0 | 0.35 | 0.37 | 0.55 | 22.0 | 0.8” |

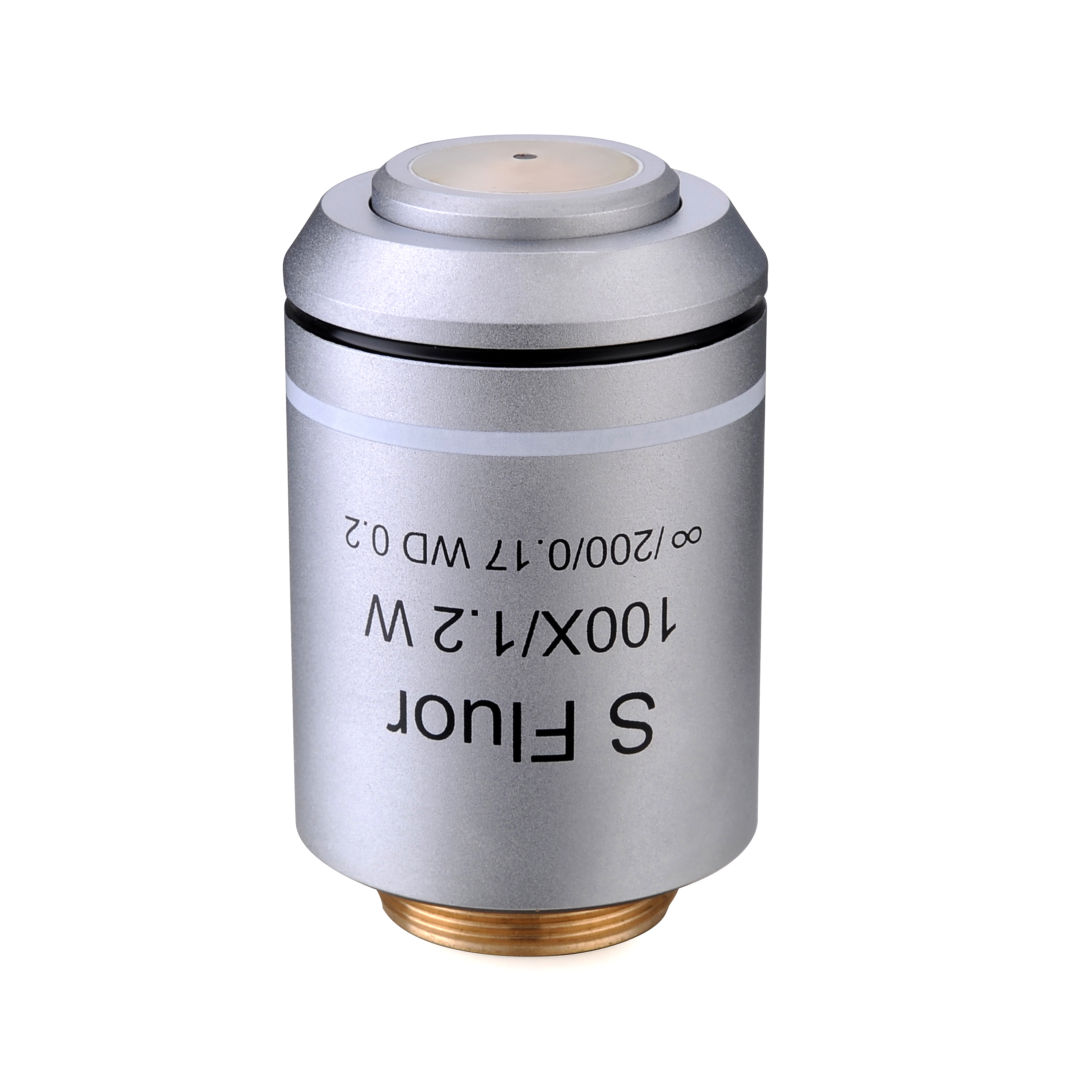

100x（Water） | Fluorescence-100X(W) | 1.20 | 0.16 | 2.0 | 0.28 | 0.23 | 0.22 | 22.0 | 0.8” |

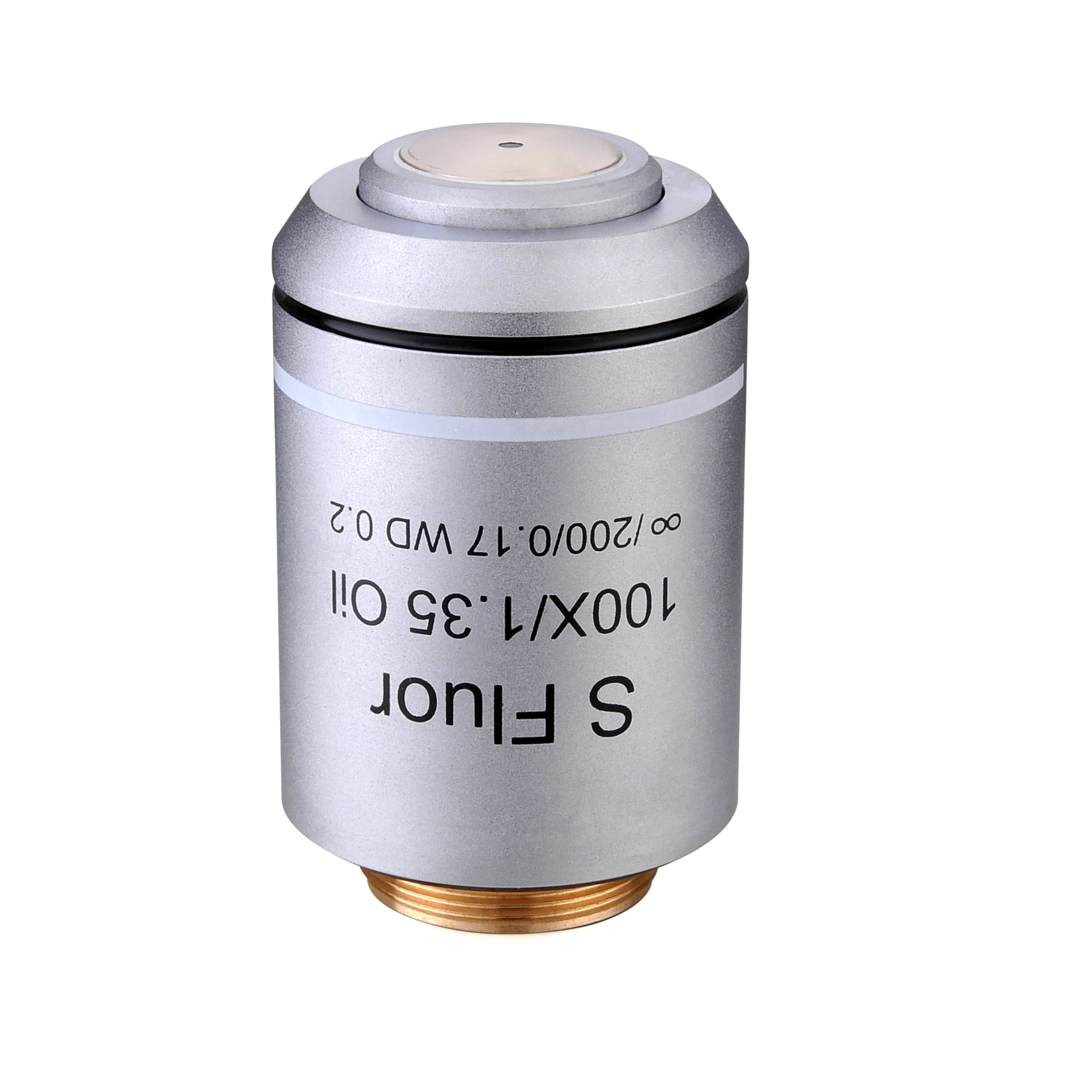

100x（Oil） | Fluorescence-100X(O) | 1.35 | 0.08 | 2.0 | 0.25 | 0.18 | 0.22 | 22.0 | 0.8” |
