1. Infinity 95MM (Plan NUV APO) f′=200mm（Tube lens） Wave Range: 350nm-700nm Focus Length : 95mm
Our NUV series objectives with the sharp image, specifically for photolithography.
1. Infinity 95MM (Plan NUV APO) f′=200mm（Tube lens） Wave Range: 350nm-700nm Focus Length : 95mm
放大倍数 Magnification | 规格型号 Model | 数值孔径 NA | 工作距离 WD(mm) | 焦距 f’ (mm) | 分辨率 R (μm) 546nm | 分辨率 R (μm) 355nm | 焦深 DF (μm) | 物方视场 on object (mm) | 像方视场 on image (mm) | 螺纹尺寸 Screw |

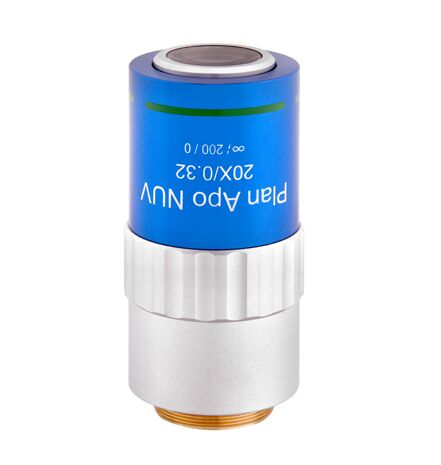

20x | NUV-20X | 0.32 | 33.0 | 10 | 0.70 | 0.68 | 2.17 | 1.3 | 26.0 | M26 |
50x | NUV-50X | 0.70 | 2.5 | 4 | 0.48 | 0.31 | 0.89 | 0.52 | 26.0 | M26 |
50x | NUV-50X | 0.42 | 17.7 | 4 | 0.79 | 0.51 | 1.89 | 0.50 | 26.0 | M26 |
50x | NUV-50X | 0.42 | 15.6(T=3.5) | 4 | 0.79 | 0.51 | 1.89 | 0.50 | 26.0 | M26 |
100x | NUV-100X | 0.80 | 4.0 | 2 | 0.27 | 0.26 | 1.33 | 0.26 | 26.0 | M26 |
100x | NUV-100X | 0.50 | 10.20 | 2 | 0.67 | 0.25 | 1.33 | 0.25 | 26.0 | M26 |
100x | NUV-100X | 0.50 | 8.5(T=3.5) | 2 | 0.67 | 0.25 | 0.35 | 0.25 | 26.0 | M26 |
500x | NUV-500X | 0.75 | 1.3 | 0.40 | 0.30 | 0.05 | 0.59 | 0.05 | 26.0 | M26 |
