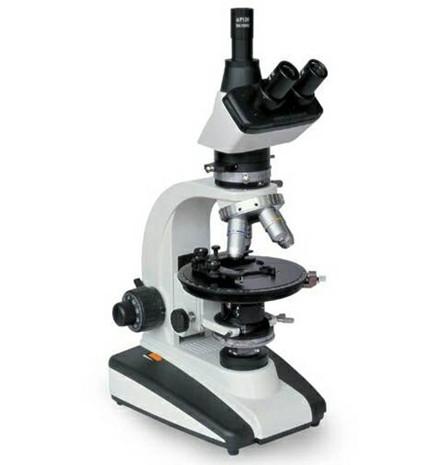

XP-500 Transmission Polarizing microscope is KOZO’s mature products which experienced years marketing development. It's the customer’s favorite products and is strong from dentifying crystals suspended in liquid, identifying minerals in core samples to detecting defects in semiconductors ect.

Specification		XP-500B	XP-500T
Optical System	Finity Optical System	●	●
Viewing Head	Sliding binocular, Inclined at 45 ° ( 52~74mm )	●
Viewing Head	Sliding trinocular, Inclined at 45 ° ( 52~74mm )		●
Eyepiece	WF10X/18mm	●●	●●
	WF10X/18mm gridding	●	●
	WF10X/18mm with reticule	●	●
	WF10X/22mm	○	○
	WF16X	○	○
	WF20X	○	○
	P16X	○	○
Complementer	Grps 1 λ	●	●
	Mica 1/4 λ	●	●
	Quartz Wedge	●	●
Objective	Achromatic objective 4X	●	●
	Achromatic objective10X	●	●
	Achromatic objective 25X	●	●
	Achromatic objective 40X(S)	●	●
	Achromatic objective 63X (S)	●	●
	No-Stress objective 100X (S,Oil)	○	○
Stage	Round revolving stage, Stage: Φ160mm Rotatable: 360 °	●	●
Condenser	Swing type N.A1.25 Abbe condenser with iris diaphragm and filter	●	●
Collector	High brightness light collector	●	●
Filter	Blue	●	●
Focus System	Coaxial coarse and fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm	●	●
Illumination	Halogen tungsten bulb 6V/30W.AC 85V~230V,Adjustable brightness	●	●
Measure rule	0.01 mm	●	●
Adjustment knob	Adjustment center	●	●
CCD Adapter	0.5X, 0.57X, 0.75X	○	○
Weight/Volumn	1 carton10kg/322758CM	●	●
